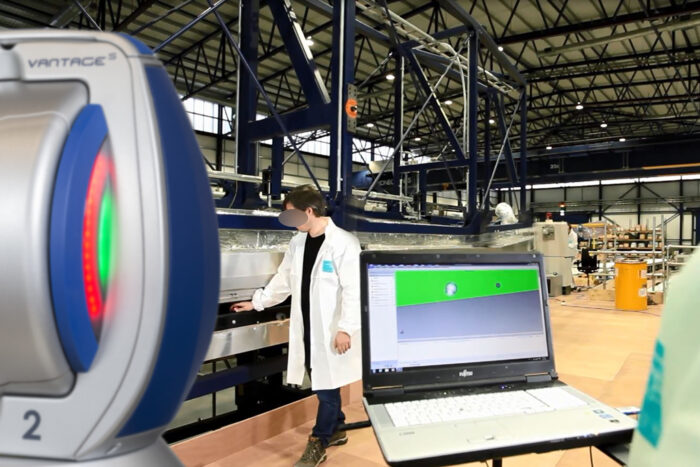

AM_VantageS_Data_Capture_FM_Application_HR

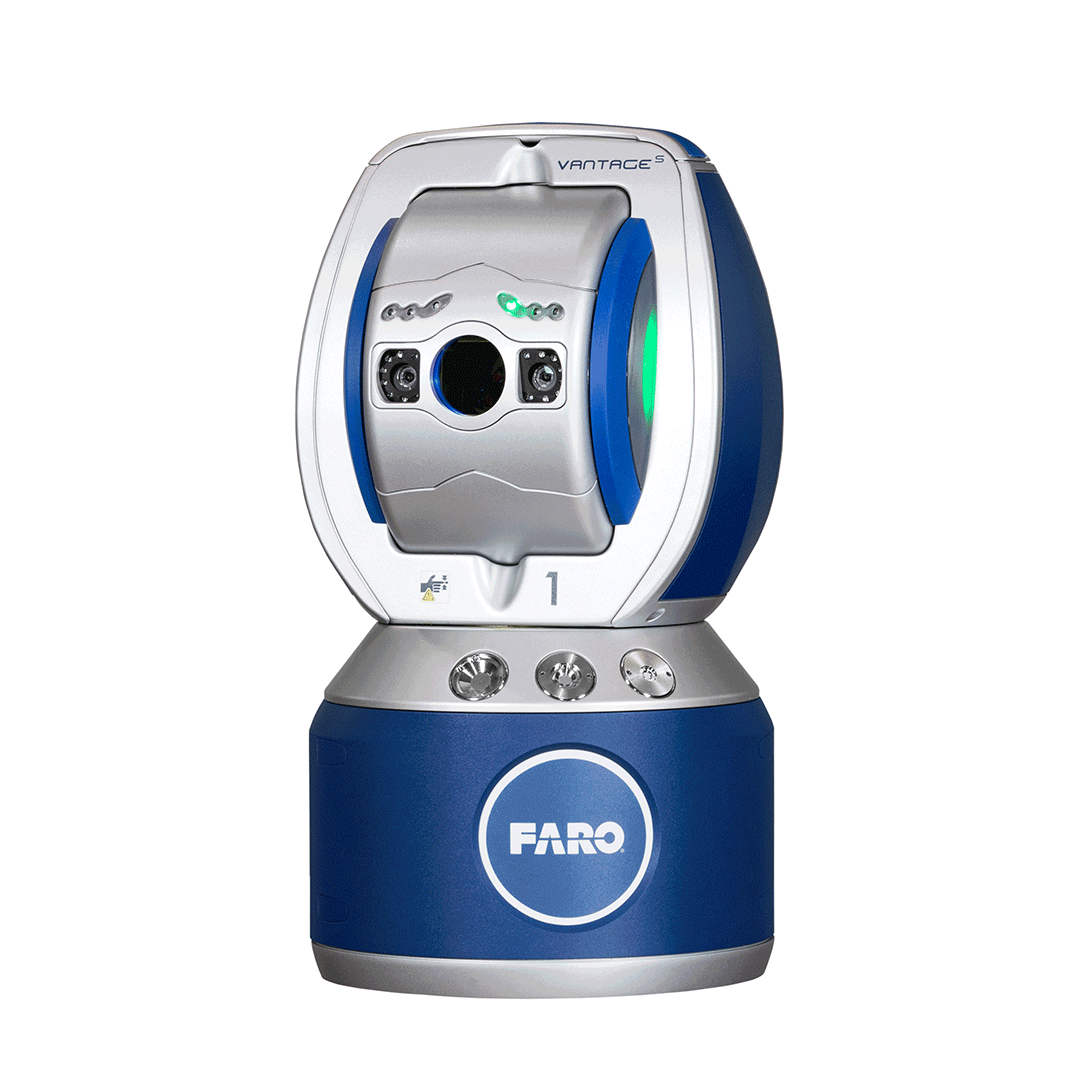

FARO – Laser Tracker Vantage E & S 3D

“Large-Scale, Portable, High-Accuracy 3D Measurement.”

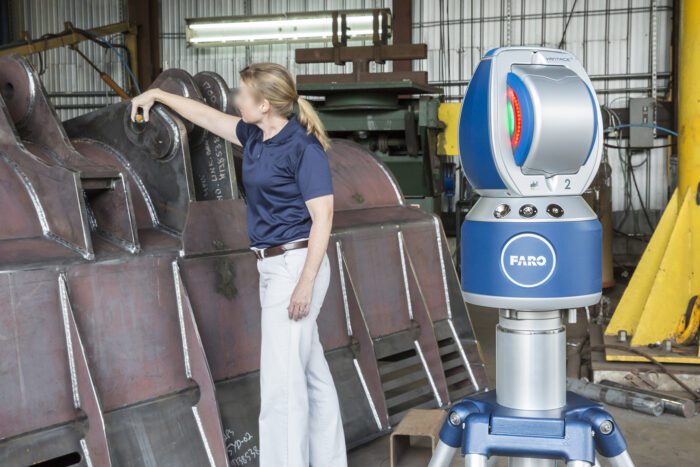

FARO Vantage^® Laser Trackers optimize workflow productivity for large-scale metrology applications including, but not limited to, assembly alignment, part and assembly inspection, machine installation and alignment.

Compact and Portable – the Vantage line of laser trackers offers an array of amazing features:

ActiveSeek™ technology that allows the laser trackers to find and follow the target, even after the user passes behind obstructions.
High-Speed Dynamic Measurement
Exceptional Portability and Ruggedness

Category: Portable Measurement Devices

Description
Additional information

Description

ActiveSeek™

FARO’s patent-pending feature to quickly and efficiently locate and lock onto a target – allowing the Vantage to follow a moving target, even behind obstacles, and lock onto the target again when it is stable. Stereo cameras with a 50° field of view, the best in the industry, make ActiveSeek effective across a wide footprint.

Integrated Absolute Distance Measurement System (iADM)

The Laser Tracker FARO Vantage is the only one that uses one laser to measure angle and distance with iADM to ensure exceptional accuracy. Reliability is improved.

Maximize productivity and reduce inspection times

Faster, easier measurement with ActiveSeek and and field compensation.

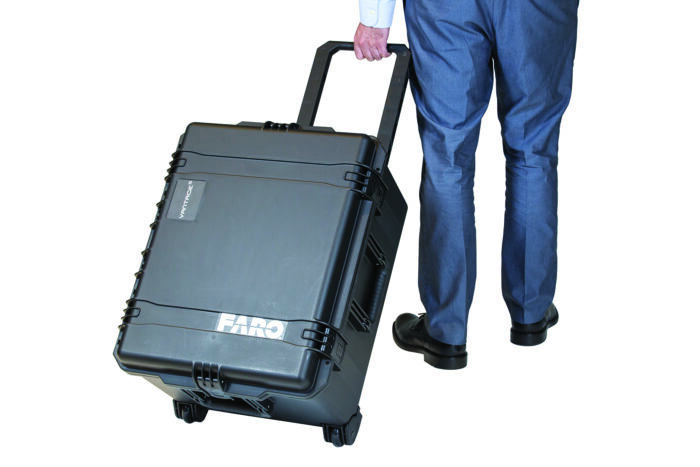

Portability

Easy transport and setup – no Master Control Unit required

Robust performance and repeatable measurement

High accuracy.
IP52 water and dust resistant
Humidity: 0 to 95% non-condensing
Operates in darkness or bright sunlight

Features & Benefits

Easy, immediate, and repeatable results
Compact design, low weight
Accurate
High-Speed Dynamic Measurement for moving or scanning application and real time adjustment.

Additional information

Measurement Volume (Diameter)	Vantage E = 70 m Vantage S = 160 m
Dynamic Measurement Speed (Points/Sec)	1000 pts / sec
Rotational Envelope	Horizontal: 360° – Infinite rotation Vertical: 130° (+77.9° to -52.1°) – Infinite rotation
Laser Class 1	630-640 nm laser 0.39 milliwatt max/cw
Dimensions	Size: 240(W) x 416(H) mm Weight: 13.4kg
Distance Measurement Performance	Resolution: 0.5μm Accuracy (MPE): 16μm + 0.8μm/m Max Radial Acceleration: 30m/sec2 (82.0ft/sec2) Max Radial Velocity: > 25m/sec
Angle Measurement Performance	Angular Accuracy (MPE): 20μm + 5μm/m Precision Level Accuracy: ± 2 arcseconds
