Optimize Throughput While Maintaining

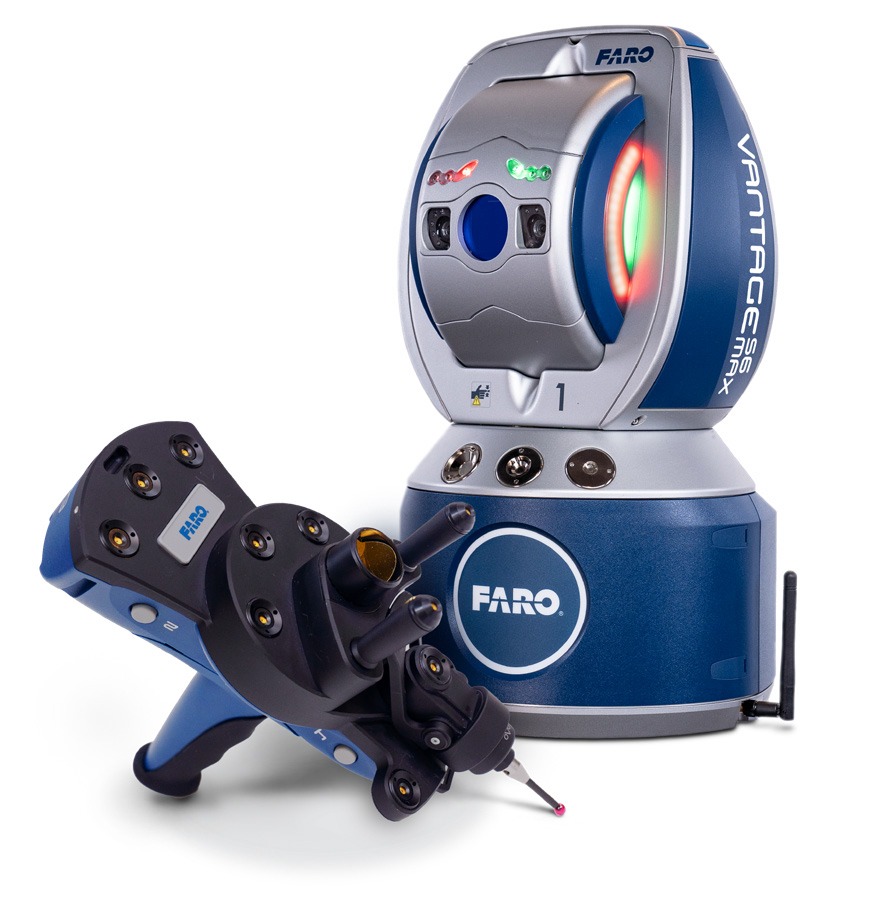

High-Inspection Accuracy The FARO ® Vantage S6 Max and Vantage E6 Max Laser Trackers offer comprehensive, large-volume 3D measurement up to 80 meters, significantly streamlining your organization’s processes and Vantage Max laser trackers maximize 6 degrees of freedom (6DoF) measurement capabilities via the optional 6Probe, enabling precise measurement of hidden areas and small features.
The 6Probe is a 6DoF solution that meets the dynamic measurement, speed, and accuracy requirements of the most challenging industrial applications. With kinematic self-identifying
styli, you can change probing tips quickly and measure without any recalibration, plus measure hidden areas outside of the tracker’s line of sight with wide acceptance angles.
The typical user of the Vantage Max can save up to 60 minutes of time on any given workday — with a total productivity improvement of 20% compared to lower accuracy probes.
The Vantage Max enables organizations to build, inspect and measure products and parts quickly, simply and precisely with exceptional portability, increasing throughput while maintaining high inspection accuracy.
Key Features and Benefits
- Eliminate SMR nests
- Measure hidden areas outside of the tracker’s line of sight, while limiting device movements
- Change probing tips on the fly with kinematic self-identifying styli
- Enable CMM-style probing in small, tight and hard-to-reach spaces
- Quickly scan surfaces with high-density using a 1,000 Hz measurement rate of single beam iADM
- Locate targets quickly in a wide area with 50 degree FOV cameras and ActiveSeek™
- Supports the patented Super 6DoF TrackArm solution, which allows the Vantage Max and one or more FARO ScanArms to work together to create an integrated contact and noncontact 3D measurement system. Probe and scan up to 60 meters away without line of sight by measuring with Super 6DoF TrackArm
- Easy to transport with no external control unit
- Measure far from stable power with hot-swappable batteries
- Bring the software to where you measure with Integrated WLAN
- Place the tracker where you need it with support for horizontal, upside down, or angled mounting
- Eye-safe Class 1 laser can be used in more facilities without additional PPE
- Control the tracker and see live video feed from a mobile phone or tablet with RemoteControls™
- Reliably measure in challenging environments with temperature, and humidity
