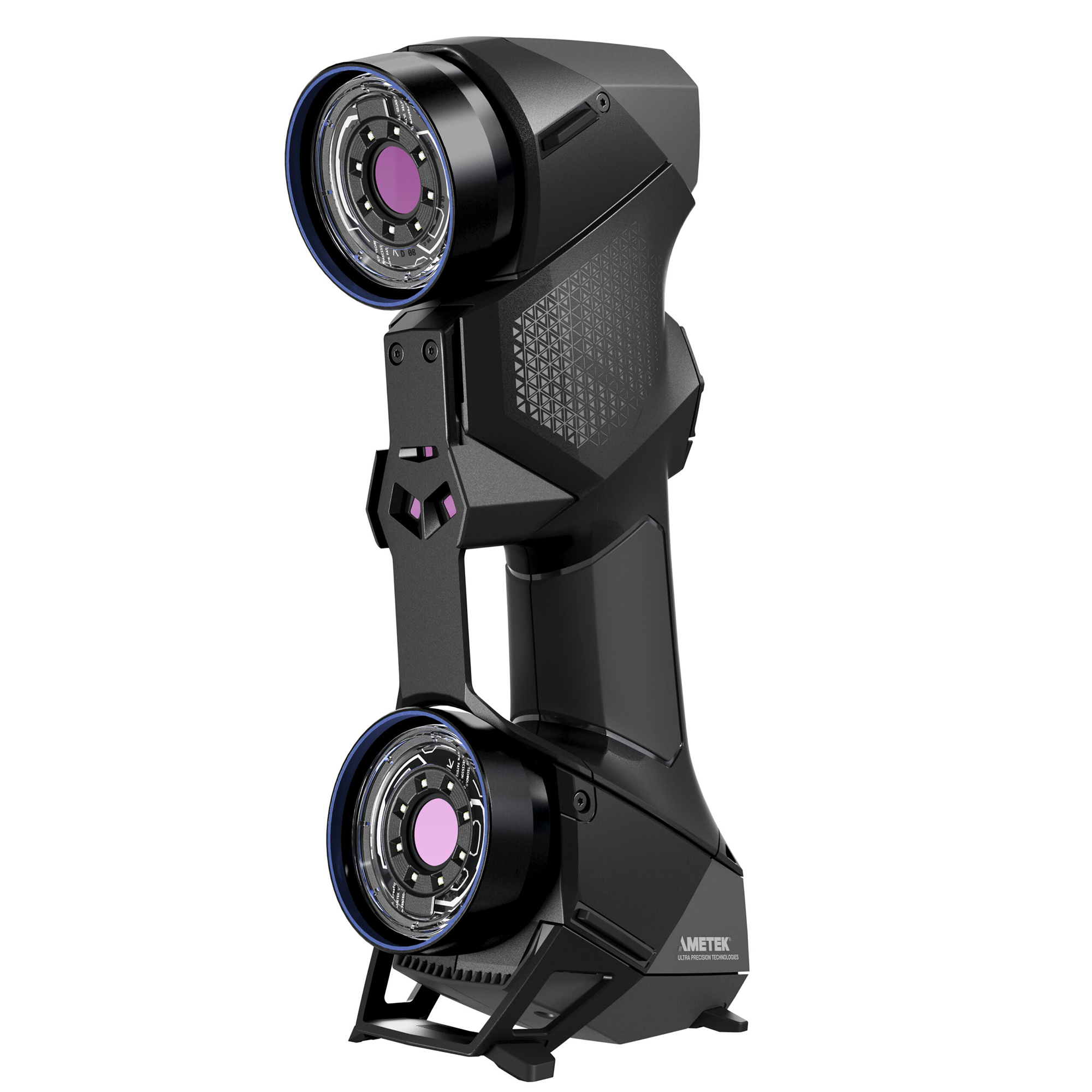

Creaform – handheld scanner HandySCAN

“THE TRULY PORTABLE METROLOGY-GRADE 3D SCANNERS.”

When accuracy meets versatility and portability

The HandySCAN 3D™ line-up is the reference in portable metrology‑grade 3D scanner. Now in its 3rd generation, it has been optimized to meet the needs of design, manufacturing and metrology professionals looking for the most effective and reliable way to acquire accurate 3D measurements of physical objects anywhere.

This fast and versatile patented handheld 3D scanner is easy-to-use and generates highly accurate and repeatable results—even in difficult environments and with complex surfaces.

Description

> More videos on our Youtube channel : www.youtube.com/g2metric_israel

Features :

SIMPLICITY & VERSATILITY
- Plug and play
- Simple user interface and real-time mesh visualization
- Single device fits all needs
- Masters complex and difficult surfaces
PORTABILITY
- Lightweight
- Dynamic referencing
- Fits into a suitcase
- Take it anywhere you need
SPEED
- Instant mesh
- High measurement rate
- Quick set-up – Up and running in less than 2 minutes
ACCURACY
- Reliable results
- Volumetric accuracy 0.020 + 0.040 mm/m
- High resolution for fine details

Technical details :

<td “width=”30%”> Characteristics

HandySCAN 307™	HandySCAN BLACK™	HandySCAN BLACK™ \| Elite
ACCURACY	Up to 0.040 mm	0.035 mm	0.025 mm
VOLUMETRIC ACCURACY	0.020 mm + 0.100 mm/m	0.020 mm + 0.060 mm/m	0.020 mm + 0.040 mm/m
VOLUMETRIC ACCURACY with MaxSHOT Next™ \| Elite	0.020 mm + 0.015 mm/m
MEASUREMENT RESOLUTION	0.100 mm	0.025 mm
MESH RESOLUTION	0.200 mm	0.100 mm
MEASUREMENT RATE	480,000 measurements/s	800,000 measurements/s	1,300,000 measurements/s
LIGHT SOURCE	7 red laser crosses Laser class 2M (eye-safe)	7 blue laser crosses Laser class 2M (eye-safe)	11 blue laser crosses (+ 1 extra line) Laser class 2M (eye-safe)
SCANNING AREA	275 x 250 mm	310 x 350 mm
DEPTH OF FIELD	250 mm
PART SIZE RANGE	100 – 4000 mm	50 – 4000 mm
WEIGHT	0.85 kg	0.94 kg
DIMENSIONS (LxWxH)	77 x 122 x 294 mm	79 x 142 x 288 mm
CONNECTION STANDARD	1 X USB 3.0
