Brunson manufactures a variety of heavy duty metrology strands stipods. All our 230 Series metrology stands are an excellent choice for average shop and plant requirements.
This stand exist with a wide range of working height in order to fit our customer requirements.

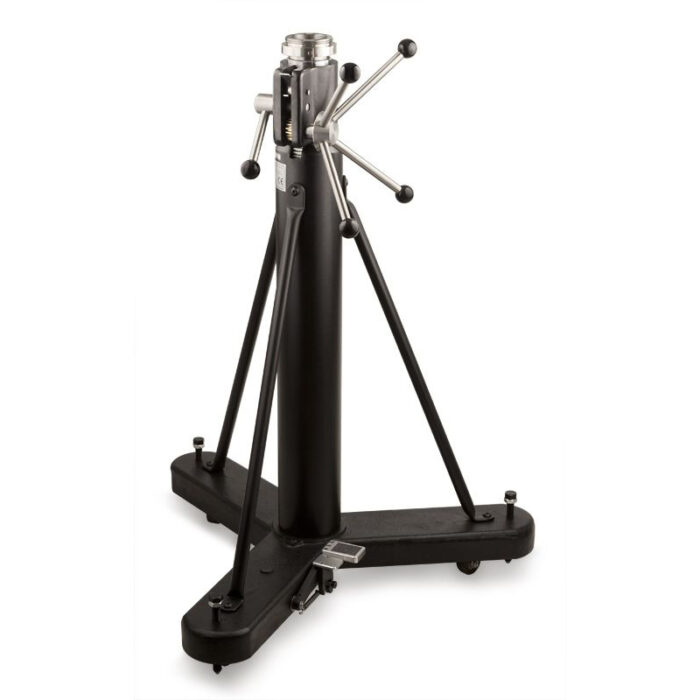

- 230 Series 43″ – 68.5″ (109-174 cm).

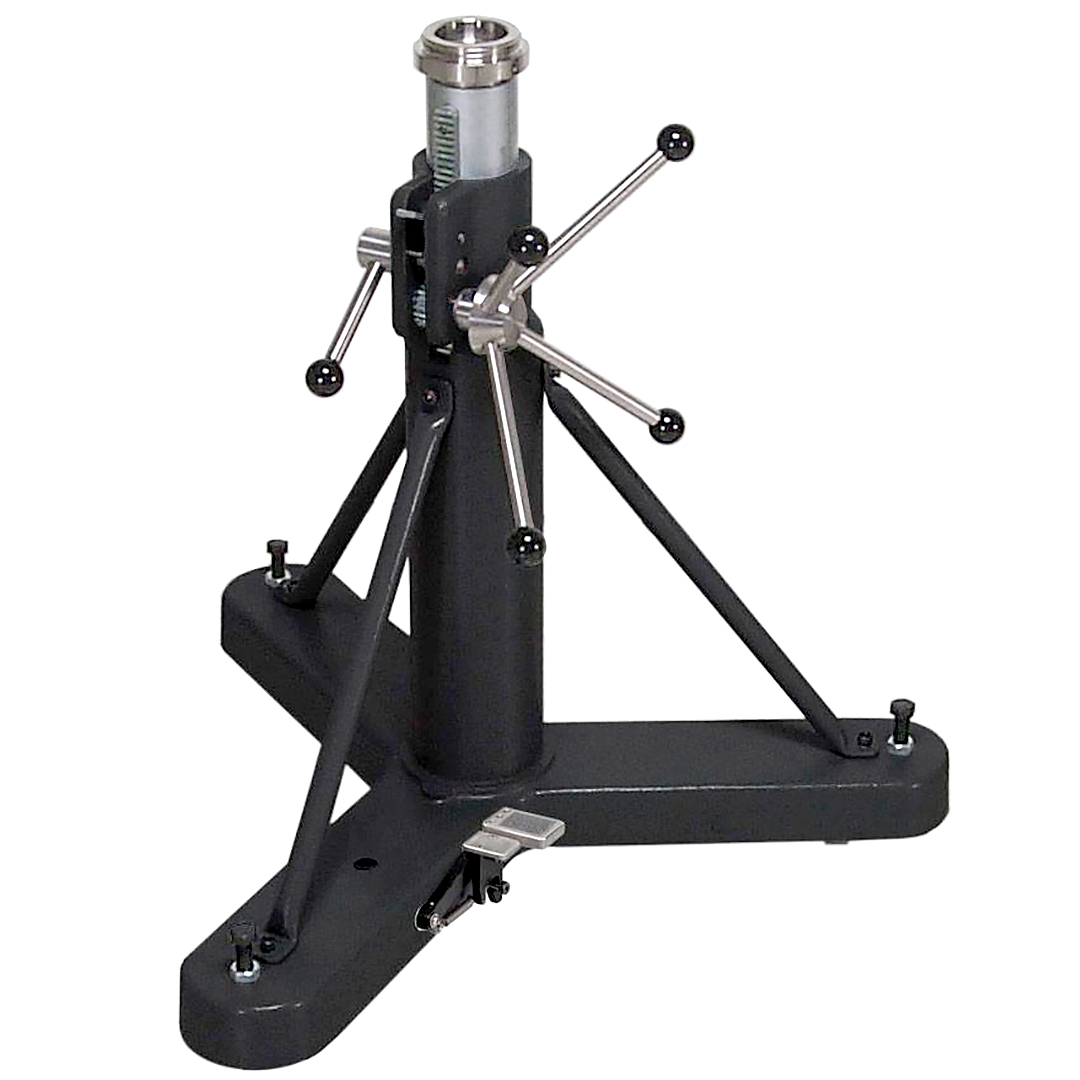

- 231 Series 30″- 43″ (76-109 cm)
- 233 Series 37″- 56.5″ (94-143.5 cm)

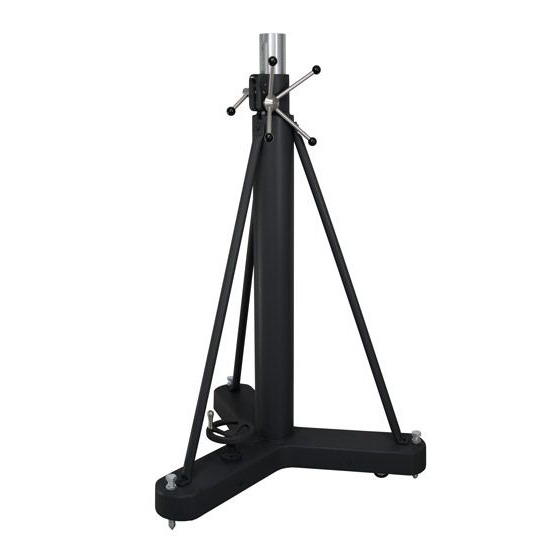

- 232 Series 67″-112″ (170-284 cm)
Datasheet & Reference.
| 230 Series | 231 Series | 233 Series | 232 Series | |
| Finish | Black | Black | Black | Black |
| Min Height mm | 1092 mm | 762 mm | 940 | 1727 mm |
| Max Height mm | 1740 mm | 1092 mm | 1435 mm | 2870 mm |
| Max Load (kg) | 68 kg | 68 kg | 68 kg | 68 kg |
| Weight, Product (Approx.) kg | 84 kg | 72 kg | 81 kg | 267 kg |
