“Scanning. Simple, Precise” With the new scanner line PrimeScan, Hexagon Manufacturing Intelligence provides an attractive entry-level solution for highly precise 3D digitisation of industrial components. The PrimeScan is an entirely new development. Like the classical high-end scanner lines SmartScan and StereoScan, it is based on the fringe projection technology that provides the strongest luminous power and the best projection quality. The PrimeScan works with the renowned OptoCat software, and thus uses the same algorithms for fast creation of highly-precise point clouds with highest data quality as SmartScan and StereoScan.
-
“The 3D optical scanner that’s made to measure” The SmartScan is the ultimate workhorse for 3D optical scanning. Built on a platform of speed, accuracy, portability and flexibility, the SmartScan is the ideal solution for the digitisation of complex small-to-medium sized components. Like other 3D optical scanners in the AICON Scanner range, the SmartScan is a white light scanner that works on the fringe projection principle. This contactless optical scanning technology allows for very fast data acquisition and a high level of detail, particularly with the 12 megapixel cameras.
-
“See What You Measure“ – Hexagon Manufacturing Intelligence enters into a new dimension of fringe projection. It is now possible for the first time to visualize the results of a measurement directly on the object. With the AICON StereoScan neo, we delivers an innovative new feature: Variable Light Projection (VLP) technology. The digital adaptive full colour projection technique of the StereoScan neo provides the necessary rectification by using colour and intensity control to optimally adjust to the given surface reflection properties. This feature allows also to project immediately and visualize the deviations from the CAD on the surface of the scanned object itself.
-
“Automated tube inspection in high-resolution.” TubeInspect is an all-in-one turnkey measurement cell specially developed for the efficient quality control of bent tubes and wires. Powered by an array of high-quality cameras that deliver unmatched optical scanning functionality, TubeInspect is all about making tube measurement as fast as possible without compromising on data quality and accuracy. Powered by the leading BendingStudio software platform, a TubeInspect system can become the central hub for controlling and analysing the entire tube production process.
-
Brunson manufactures a variety of heavy duty metrology strands stipods. All our 230 Series metrology stands are an excellent choice for average shop and plant requirements. This stand exist with a wide range of working height in order to fit our customer requirements.- 230 Series 43" - 68.5" (109-174 cm).
- 231 Series 30"- 43" (76-109 cm)
- 233 Series 37"- 56.5" (94-143.5 cm)
- 232 Series 67"-112" (170-284 cm)
230 Series 231 Series 233 Series 232 Series Finish Black Black Black Black Min Height mm 1092 mm 762 mm 940 1727 mm Max Height mm 1740 mm 1092 mm 1435 mm 2870 mm Max Load (kg) 68 kg 68 kg 68 kg 68 kg Weight, Product (Approx.) kg 84 kg 72 kg 81 kg 267 kg
-
Brunson manufactures a variety of portable stands which are designed to give metrology professionals a great deal of flexibility. This collapsible, tripod-type stand is available in a number of standard configurations. Just tell us your preference.
-

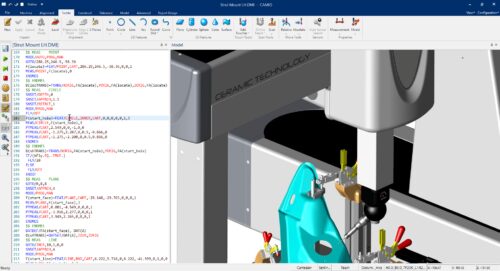

LK Metrology is renowned for innovative CMM hardware and software solutions – CAMIO8 - , and has been credited with :- the first bridge-style CMM,
- the first high accuracy horizontal arm CMM
- the first software developed specifically for CMMs.
-
“THE FASTEST AND EASIEST 3D SCANNING EXPERIENCE.” “Innovating technology that provides TRUaccuracy™, TRUsimplicity™, TRUportability™ as well as real speed to your metrology‑grade applications.” The Go!SCAN 3D™ is our fastest, user-friendly handheld 3D scanner. A powerful tool during the product development phase, the Go!SCAN 3D quickly measures any complex surface making it possible to "get it right" the first time. With its seamless integration to your 3D modelling software and your product life cycle management workflow, it will greatly improve product development, foster innovation and shorten time to market. Designed to scan any object without need for a set-up, it offers flawless texture and geometry acquisition as well as impressive details in a rich color palette. Just go… and scan!
-
“THE TRULY PORTABLE METROLOGY-GRADE 3D SCANNERS.” When accuracy meets versatility and portability The HandySCAN 3D™ line-up is the reference in portable metrology‑grade 3D scanner. Now in its 3rd generation, it has been optimized to meet the needs of design, manufacturing and metrology professionals looking for the most effective and reliable way to acquire accurate 3D measurements of physical objects anywhere. This fast and versatile patented handheld 3D scanner is easy-to-use and generates highly accurate and repeatable results—even in difficult environments and with complex surfaces.
-
“FAST AND ACCURATE 3D SCANNER AND PORTABLE CMM FOR THE SHOP FLOOR.” SPEED AND ACCURACY COMBINED WITH VERSATILITY Fast, accurate, and versatile, the MetraSCAN 3D™ optical CMM scanner line-up is designed for manufacturing and metrology professionals who want to deliver approved quality parts quickly and efficiently. Insensitive to shop floor vibrations, part movement, and environmental instability, the MetraSCAN 3D significantly increases the efficiency, reliability, and versatility of measurement processes. Engineered to work both in the metrology lab and on the production floor, the MetraSCAN 3D is optimized to perform metrology-grade measurements and 3D surface inspections on a large variety of parts regardless of size, material, finish, or complexity. Simply put, the MetraSCAN 3D is the ideal metrology tool for quality control and quality assurance applications. When paired with the HandyPROBE™, which offers optional probing capability, users can harness the power of both 3D scanning and probing for a complete, streamlined inspection process.
-
“Optical coordinate measuring system.” YOUR BEST SHOT AT LARGE-SCALE METROLOGY PROJECTS Creaform’s MaxSHOT 3D lineup is a game changer for product development, manufacturing, quality control and inspection teams that need the highest measurement accuracy and repeatability as much for large scale projects than for parts from 2 to 10 m. Imagine achieving accuracy better than 0.015mm/m ! Thanks to its sophisticated user guidance technology and easy-to-use software, the MaxSHOT 3D is ideal for users of all levels even non-metrology experts, so that you gain peace of mind knowing your measurements are always right on the dot and you increase process efficiency. If you consistently work on large-scale projects, the MaxSHOT 3D is your go-to solution to slash budget-busting measurement mistakes, improve product quality, increase process efficiency—and minimizes overall operating costs.
-
“Freestyle 2 : ” The FARO® Freestyle 2 is a superior handheld 3D scanner designed for investigators and reconstructionists who require quick and easy complete scene documentation. Delivering fast, photorealistic 3D reality capture with unparalleled real-time display results, Freestyle 2 offers total mobility to scan even the most confined spaces and difficult objects..
-
“Large-Scale, Portable, High-Accuracy 3D Measurement.” FARO Vantage® Laser Trackers optimize workflow productivity for large-scale metrology applications including, but not limited to, assembly alignment, part and assembly inspection, machine installation and alignment. Compact and Portable - the Vantage line of laser trackers offers an array of amazing features:- ActiveSeek™ technology that allows the laser trackers to find and follow the target, even after the user passes behind obstructions.
- High-Speed Dynamic Measurement
- Exceptional Portability and Ruggedness
-
“Large-Scale, Portable, High-Accuracy 3D Measurement.” FARO Vantage® Laser Trackers optimize workflow productivity for large-scale metrology applications including, but not limited to, assembly alignment, part and assembly inspection, machine installation and alignment. The VantageS6 and VantageE6 deliver 6 Degrees of Freedom (6DoF) measurement capabilities via the optional 6Probe, enabling access to hidden areas and small features. Compact and Portable - the Vantage line of laser trackers offers an array of amazing features:- ActiveSeek™ technology that allows the laser trackers to find and follow the target, even after the user passes behind obstructions.
- 6DoF (6 Degrees of Freedom) Handheld 6-Probe enables the user to measure hidden areas that are not in direct line of sight.
- High-Speed Dynamic Measurement
- Exceptional Portability and Ruggedness
-
“Laser scanner for fast and exact indoor and outdoor 3D measurements.” The ultra-portable FARO Laser Scanner FocusM 70 enables fast, straight-forward and accurate measurements of construction sites, small-scale facades, complex structures, production and supply facilities and crash and crime scenes. The 3D scan data can easily be imported into all commonly used software solutions for architecture and construction, forensics and accident reconstruction or industrial manufacturing.
-
“Laser scanner for fast and exact indoor and outdoor 3D measurements.” The ultra-portable FARO Laser Scanner FocusS 150 or 350 Plus enables fast, straight-forward and ultra-high accurate measurements of objects and buildings. It records architectural façades, complex structures, production and supply facilities, accident sites, and large-volume components delivering realistic and true-to-detail scan results with a range of 150m or 350m per scan.
-
“Laser scanner for fast and exact indoor and outdoor 3D measurements.” The ultra-portable FARO Laser Scanner FocusS 70 enables fast, straight-forward and ultra-high accurate measurements of objects and buildings. It records architectural façades, complex structures, production and supply facilities, accident sites, and large-volume components delivering realistic and true-to-detail scan results with a range of 70m per scan.
-
“Portable, non-destructive elastomeric 3D imaging systems.” GelSight is a MIT (Massachusetts Institute of Technology) spinoff company commercializing a novel non-destructive elastomeric 3D imaging systems. Our proprietary technology provides extremely detailed and rapid surface measurements based on proprietary, metal-coated elastomeric sensor (« Gel ») filters out optical characteristics. Specific 3D algorithms convert image data to quantitative local information. All surfaces of all materials including highly reflective ones can be measured (alloys, aluminium, composite, glass…) Very well adapted to quantify scratches, drill marks, dents, bevel, discontinuities, etc… Fast, detailed images captured in few milliseconds GelSight images can be compared to Scanning Electron Microscope (SEM).
-
KinAiry is the comprehensive, independent solution for laser tracker evaluation, utilizing NIST's new Interim Field Test Procedure IR-80161. The KinAiry system provides a set of traceable measurements designed to verify volumetric performance in your environment. The result is a colorized graphical analysis that quickly shows the overall health of your tracker.
-
Technical Description Make your routine scanning easier with the carbon tripod. Save significantly on weight: The robust tripod for the FARO Focus Laser Scanner just weighs only 2,04kg.
-
Technical Description
Highly accurate, extremely robust, long-lasting, excellent reflective properties, and built for daily use. The reference sphere set is perfect for FARO Laser Scanning application in order to easily perform the alignment of different scan position, and consists of 6 reference spheres in a sturdy carrying case. Quality: Made in Germany.
-
“The compact all-in-one multi-sensor CMM.” With superior technology, advanced features and a small footprint, the multi-sensor Coordinate Measuring Machines / CMM ALTERA C from LK Metrology, is ideal for all types of precision measurement in quality labs, production areas and technology centres. Unique accuracy guarantee LK Metrology is the only manufacturer to guarantee the accuracy of its CMMs for 10 years. With throughput, precision, multipurpose, shopfloor and custom options available, ALTERA is the most configurable CMM platform available for quality and process control measurement.
-
“Excellence now and in the future.” The Altera M from LK Metrology range of performance CMMs delivers exceptional throughput and enhanced precision for production applications. Exclusively designed for high-speed tactile probe scanning and laser scanner applications, the Altera M is the preferred choice for automotive and aerospace and other manufacturers of performance-critical components. Unique accuracy guarantee LK Metrology is the only manufacturer to guarantee the accuracy of its CMMs for 10 years.
-
“The all-in-one multi-sensor CMM.” All you need in a multipurpose CMM with superior ceramic technology to deliver accurate measurements at an affordable price. ALTERA S from LK Metrology is your solution with the most advanced capabilities in the compact CMM class. Innovative multi-sensor ready technology allows you to expand the capability of your CMM as your requirements change, and without expensive controller upgrades. ALTERA S is ideal for all types of precision measurement and is the most configurable CMM platform available for in quality labs, production areas and technology centers. Unique accuracy guarantee LK Metrology is the only manufacturer to guarantee the accuracy of its CMMs for 10 years.
-
“The sole 5 axis CMM oriented to Speed, Accuracy and Flexibility.”With advanced probe and controller technology, LK Metrology has launched its ALTERA SCANtek 5-axis CMM which combines 3-axis CMM motion with an articulating head that moves in 2-axis as it measures.
The resulting 5-axis motion delivers unprecedented measuring speed, accuracy and flexibility, whilst avoiding the compromises inherent to conventional CMM probing techniques.
Infinite head positioning further aids access to difficult to measure features and increases the effective measuring volume of the CMM by minimising the space required for head orientations.
Unique accuracy guarantee LK Metrology is the only manufacturer to guarantee the accuracy of its CMMs for 10 years.
-
“Automatic Visual Quality Inspection System.” LYNX from G2METRIC, is a fully automated vision system. It significantly reduces inspection times and improves traceability with robust reporting. LYNX embeds a HD camera which takes the reference image and inspection image. Unlike most vision systems we can capture multiple components through our rotation and tilt. LYNX captures the differences using patented high performance optical filters and patented Artificial Intelligence embedded in the Lynx software. LYNX detects the defaults between a reference picture to an acquired one, and highlight the defaults detected allowing to visualize the results on the part in order to repair it.
-
“Automatic Visual Quality Inspection System.” LYNX AR from G2METRIC, is an advanced system based on LYNX, dedicated for a fully automated vision inspection. LYNX AR embeds a dedicated projection unit which project directly on the part the Assembly sequences and / or the result of the inspection. This feature allows to project immediately and visualize the results on the part itself, and the necessary rectification can be taken right away.
-
A few simple rules can be applied to maximize the accuracy for most probing applications.A = ball diameter
B - Overall Length
Renishaw uses a standard description of overall length, measured from the rear mounting face of the stylus to the center of the ball.C = stem diameter
D - Effective Working Length (EWL)
This is measured from the center of the ball to the point at which the stem will contact the feature when measuring 'normal' to the part. EWL can also be affected by assembly tolerances. For this reason Renishaw styli are assembled to exacting standards in controlled conditions.
-
6”, 8″ or 10” Magnetic Mount for Portable device with 3 1/2″ threaded ring Our circular magnetic mounts come in three sizes 6”, 8” and 10”. An excellent way to mount a portable CMM arm or laser tracker on a ferrous surface like a steel plate or table is using a magnetic mount. Some customers use them as a very flexible mounting solution on a large steel table or even mount them directly on the bed of a machine tool. They are easy to turn on and off, using a hex key allen wrench, so a user can quickly use one to move around while measuring a large part on a table.
-
Rhino Series Inserted SMR, Single Piece Aluminum Insert We have assembled this SMR in a way that the insert will not come out. When you drop the competitions SMR they shift or pop out after a few short drops. With our Rhino Series SMR, Drop, Pickup, and Measure on. You get the performance of a solid SMR that is much more affordable. These are available in High Accuracy SMR versions. We keep the Rhino Series SMR s in stock at all times
-
Glass Element SMR: made up of 3 separate pieces of glass The Silverback SMR is the MetrologyWorks version of the classic Laser Tracker SMR that uses 3 panels of glass that are assembled into an optic and then that optic is assembled into the SMR. These SMR s are known for their entry level price as well as their overcoated optic that allows for protection from the elements and the ability to be cleaned frequently.
-
Solid Break Proof SMR, Solid Ball that is Coated Drop this SMR as many times as you want these SMR s are bullet proof. We keep the Solid Series SMR s in stock at all times
-
Technical DescriptionHowever, our checkerboard stickers are easy to apply, can be used even in humid environments and look professional. The adhesive on the back allows a residue-free removal at the end of your scan job.
perfectly suitable for any indoor or outdoor application, the checkerboard stickers allow you a quick an easy scan Registration of your FARO Laser Scanner job. registration mark are visible up to 20m (depends on selected scanner resolution)
